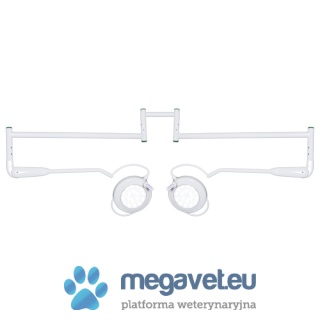

Double-dome ceiling operating light IGNIS 160/160C (TCM)

Double-dome ceiling operating light IGNIS 160/160C (TCM)

: Cena po zalogowaniu

Leave your phone

Shipping within : 1-30 working days

IGNIS 160 - Your Light Source in Surgical Precision

The IGNIS 160 is the ideal solution for medical procedures that require precise illumination. This advanced operating light delivers light with a high color rendering index for accurate diagnosis and treatment.

Main features of IGNIS 160

Intuitive Operation: The IGNIS 160 provides an intuitive user experience that allows you to concentrate on working on your patient, not adjusting the lighting.
Modern Design and Easy Maintenance: The design of the IGNIS 160 combines modernity and functionality. Ease of cleaning and decontamination is a priority.
Safe Light Source: The IGNIS 160 is a light source that meets the highest medical safety standards.
Adjustable Light Intensity: With the control panel, you can adjust the light intensity to suit the needs of your procedure.
Easy to Use: The IGNIS 160 has a monostable switch on the control panel for easy operation.
Highest Quality: The IGNIS 160 is the result of a combination of the highest quality components and precision workmanship. We provide a 24-month warranty on this product.

Technical specifications:

Luminaire type	IGNIS 160
Supply voltage	100-240V AC
Illuminance at 1m (Ec)	160,000 lux
Light intensity adjustment range	25÷100%
Color rendering index Ra	96
Red Rendering Index R9	92
Color temperature	4000-4800K
Work area diameter d10	26 cm
Spot diameter d50	14 cm
Adjustable diameter of the working area	yes
Temperature increase in the surgeon's head area	< 1°C
Illumination depth 60% L1+L2	69 cm
Illumination depth 20% L1+L2	146 cm
Power consumption of the lamp	55 watts
Protection class against electric shock	And
Enclosure protection	IP 54

Famed family of lamps:

Luminaire type	SOLIS 30	SOLIS 60	SOLIS 130	SOLIS 160	HELIOS	IGNIS
Lamp Type	Treatment	Diagnostic	Surgical and Surgical	LED Operating	LED Operating	LED Operating
Illuminance at 1m	30,000 lux	60,000 lux	130,000 lux	160,000 lux	160,000 lux	160,000 lux
Light intensity adjustment range	15% - 100%	50% - 100%	25% - 100%	25% - 100%	25% - 100%	25% - 100%
Color rendering index Ra	96	96	97	96	97	96
Color temperature	4400 K	4400 K	4000-4800K	4400 K	4400 K	4000-4800K
Diameter of the working area	230 mm	210 mm	245 mm	260 mm	260 mm	260 mm
Adjustable diameter of the working area	No	No	No	Yes	Yes	Yes
Temperature increase in the surgeon's head area	< 1°C	< 1°C	< 1°C	< 1°C	< 1°C	< 1°C
Lamp Holder Power Consumption	15 watts	20 watts	47 watts	52 watts	55 watts	55 watts

List of additional Famed products dedicated to operating, diagnostic and operating lights:

ceiling connection for SOLIS 160, HELIOS, IGNIS operating light
ceiling-to-ceiling design for SOLIS 160, HELIOS, IGNIS operating light
ceiling connection for SOLIS 30, 60 diagnostic or treatment lamp
ceiling-to-ceiling design for SOLIS 30, 60 diagnostic or treatment lamp
sterilized lamp holder for SOLIS 60, 160, HELIOS, IGNIS lamp

Warranty period: 12 months

Warranty extension up to 24 months: after a periodic technical inspection by the manufacturer's authorized service center after 12 months (paid service)
