VETNAR 1100 Small Animal Inhalation Anaesthesia with Open-Fill Evaporator [GWV]

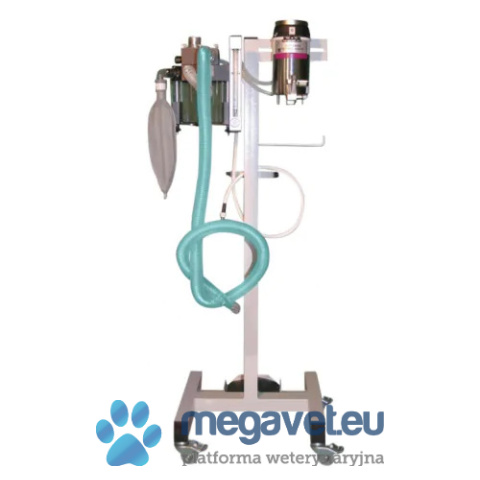

INHALATION ANESTHESIA SET VETNAR 1100

VETNAR 1100 is a compact device that allows you to save space in small spaces of operating rooms. The device operates on the road of low (concentrator) or high pressure (oxygen cylinder) O₂. All components are placed on a mobile platform that allows the installation of a soda lime container, an isoflurane or sevoflurane evaporator, oxygen cylinders and a filter for anesthetic gases. VETNAR 1100 is equipped with the DIF ( Direct Inspiration Flow ) system, thanks to which patients from 2-3 kg of weight can be anaesthetized in a semi-closed system. The device also has a semi-open system - for animals from 0.1 kg body weight.

Key features:

• Semi-closed and semi-open system for spontaneous breathing
• Oxygen supply_O2, flow_O2  read by glass flow meter
• CO₂ absorbent container
• Safety valve – to protect against excessive expansion of the patient's lungs
• Dedicated small platform for transporting equipment with a holder for a 10l oxygen cylinder
• Size 420mm x 430mm x1200mm
• Warranty: 2 years

The set includes:

• Two breathing bags (1l and 2l)
• Two breathing circuits - one for a semi-closed system, the other for a semi-open system
• Flow meter
• Wheeled stand with brakes with space for a cylinder
• Open-fill isoflurane evaporator (well-fill)

Additional accessories:

• Active system for removing used gas from the circuit
• Additional platform for the hub
• Write to us and ask for an offer!

For proper operation of the device, the set must be equipped with:

• Oxygen source
