Portable Multi-Parameter Vital Signs Monitor for Pets (RCE)

The SunTech VET 40 combines SunTech Medical's trusted blood pressure (BP) technology with pulse oximetry (SpO₂), temperature monitoring, electrocardiography (ECG) and capnography (EtCO₂/CO₂). The device provides veterinarians with a precise, portable and easy-to-use solution for carrying out procedures and continuous, non-invasive monitoring of dogs, cats and horses – both during and after procedures

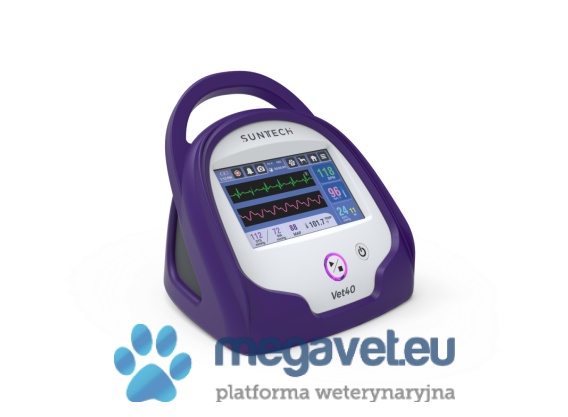

SunTech VET 40

Portable multi-parameter vital signs monitor for animals for continuous measurement of blood pressure, temperature, oxygen saturation (SpO₂), ECG and capnography (EtCO₂)

From blood pressure to capnography, VET40 meets all your monitoring needs

• The VET40 provides movement-resistant blood pressure measurements with proven SunTech Medical technology. Advantage VET BP technology guarantees precise results on dogs, cats and horses – without the need to shave fur or apply gels, every time.

• SunTech blood pressure measurement technology has been validated and meets the American College of Veterinary Internal Medicine (ACVIM) guidelines for compliance with invasive blood pressure measurement (IBP), as well as the Association for the Advancement of Medical Instrumentation (AAMI) guidelines.

• Temperature measurements in the Vet40 are based on SunTech's proven AccuVet technology.

• The pulse oximetry (SpO₂) technology in the Vet40 can be implemented based on AccuVet or Masimo solutions – depending on the user's choice.

• ECG allows the user to easily acquire heart rate data and ECG waveforms with the trusted AccuVet technology.

• Capnography technology allows non-invasive monitoring of CO₂ levels and patient respiratory rate at all times. Capnography is also based on AccuVet technology.

• A new screen and intuitive 5-inch touchscreen interface provide users with access to all the necessary features to view, analyze and transfer vital signs data.

• Data is transferred from the VET40 to the trend analysis and report application via Bluetooth and USB-C.

• HDMI port allows easy connection to larger monitors in the treatment room or other veterinary applications

Functions and parameters:

• Five-in-one: SunTech's trusted veterinary blood pressure measurement technology now also includes pulse oximetry, temperature measurement, ECG and capnography.

• Ease of use: Intuitive, high-resolution 5-inch color touchscreen.

• Accuracy: The pressure measurement algorithm was developed specifically for animals by experts from a leading veterinary university.

• Continuous Monitoring: The user can set blood pressure measurement intervals, which makes it easy to monitor during treatments.

• Mobility: Battery-powered, easy to move between monitoring stations.

• Charging: Built-in rechargeable battery when connected to mains power – reducing the use of disposable batteries.

• Memory: Up to 960 data points can be stored, even when the device is turned off. The user can select specific measurements from the memory and perform automatic blood pressure averaging.

• External Screen: A new HDMI port allows you to easily display vital signs on larger monitors in operating rooms and other spaces.

• Data Transfer: Data can be transferred to the software on your computer via Bluetooth. The application allows you to export reports in CSV or PDF format, which makes it easy to integrate with electronic medical records (EHR).

• Validation: SunTech's Vet BP pressure measurement technology meets ACVIM guidelines for Invasive Pressure Measurement (IBP) compliance and AAMI standards.

Measuring cuffs:

• Designed to measure blood pressure with veterinary monitors

• Can be used with Doppler or oscillometric monitors

• Sizes #1 - #9 (fit a wide range of animal sizes)

• Range and index marks for easy matching
