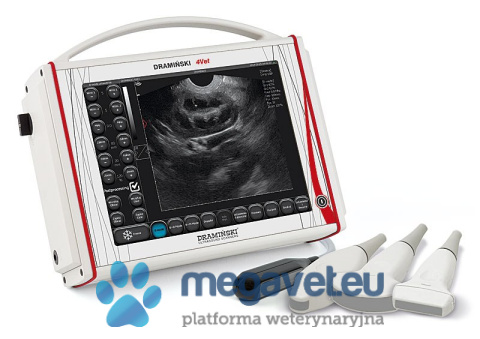

  • DRAMINSKI 4Vet - ULTRASOUND for small animals and horses (DRM)

Appreciated by the most demanding vets. Desktop and portable. Operates with many probes and has additional functions. Working with it is a real pleasure.

Type Of ULTRASOUND Black and white, Color-doppler, Portable and stationary
Cena po zalogowaniu
Cena po zalogowaniu
Shipping within 1-30 working days
Leave your phone

Excellent image quality at your hands.



Why is it worth having the DRAMINSKI 4Vet?


YOU WILL APPRECIATE COMPREHENSIVENESS OF THE SCANNER

The 4Vet ultrasound scanner is designed to perform complex imaging diagnostics of small domestic animals and horses. It can be used as a desktop device. At the same time thanks to its small weight (4 kg), dimensions and ability to run on battery power it can be used as a portable ultrasound scanner. The aluminum body makes the device durable and protects it during transportation.


CHOOSE A PROBE ADJUSTED TO YOUR NEEDS

The device cooperates with a probes: microconvex 4-9 MHz, convex 2-8 MHz, linear abdominal 6-14 MHz, endorectal 4-9 MHz and with a number of other probes on request.


YOU DECIDE WHICH ADDITIONAL FUNCTIONS YOUR DEVICE SHOULD HAVE

Additional functions: vascular colour Doppler, obstetric measurements, amplification of echo signals of a biopsy needle, DICOM 3.0.


EXCELLENT QUALITY IMAGE WILL HELP YOU TO MAKE A PROPER DIAGNOSIS

The ultrasound scanner uses digital imaging techniques such as: B Mode, B+B Mode, 4B Mode, M Mode, B+M Mode. Postprocessing technology to process images enables carrying out more advanced diagnostics.


YOU WILL BE POSITIVELY SURPRISED BY 4Vet FUNCTIONALITY

A 10.4” touch screen allows operating this device in gloves, it makes an easy access to user options of the image (gain, focus, zoom, gamma, depth of scanning, frequency of a head), management of individual sets (presets), saving of the cine loop and ultrasound images to the memory. USB 2.0 enables image transmission to an external device.


IN THE CASE OF MALFUNCTION, YOUR COMFORT IS OUR PRIORITY

We know how reliable our ultrasound scanners are, that is why we give a 2-year warranty.



The set includes:

  • scanner’s body,
  • table support,
  • a stand for the scanner (an extra option available on the client’s request),
  • 1 of 3 probes available (convex 2-8 MHz, linear rectal 4-9 MHz, microconvex 4-9 MHz),
  • power supply,
  • power cable for the ultrasound scanner’s power supply,
  • 2 packages of external batteries,
  • charger,
  • power cable for the charger,
  • bottle of ultrasound gel,
  • scriber,
  • transport bag or case,
  • manual.



Warranty: 24 months





Technical data

Dimensions 30.5 x 25.0 x 8.4 cm
Unit weight 3520 g without probe and battery pack
Battery’s weight 480 g
Display modes B Mode (Real-time)
B+B Mode (Dual Mode Display)
4B Mode
M Mode
B+M Mode
Doppler (PWD, CPD) – optional
Display 10.4” LCD with LED backlight, LCD touch panel
Probes convex 2–8 MHz,
microconvex 4–9 MHz,
linear 60 mm 5–10 MHz,
linear 40 mm 6–14 MHz,
endorectal 4–9 MHz
Control resistance touch panel
Memory image and cine loop saving to an internal disk with description, pacient’s data and date
PC transmission via USB 2.0
Power supply 1. AC adapter; power in: 100-240V AC, 50-60Hz, max 1.1A;
power out: 15V DC / 3.2A
2. bartery pack Li-Ion, 14.4V, 6,2Ah
Power consumption approx. 2,2 A
Continuous operation on fully charged battery about 2 h
Charging time 2 h (charger type: 2840 LI)
External ports USB 2.0, LAN, VGA
Standard data transmission DICOM 3.0
Low bartery indicator graphic presentation of battery level

Working temperature

+10°C to +45°C

Storage temperature

+5°C to +45°C
